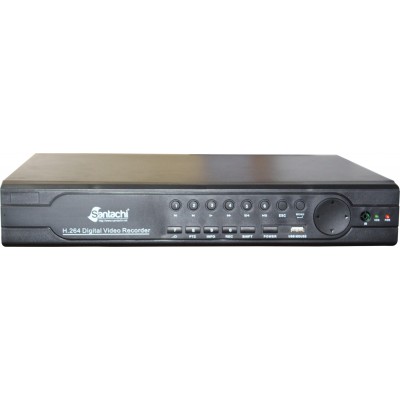

Click on above image to view full picture
Details
| Model | SAN72232TRZC |
| Video & Audio Input | |
| Analog video input | 32PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio input | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Video & Audio Output | |
| HDMI output | 800x600，1024x768，1280x1024，1440x900，720P，1080P |
| CVBS output | NO |
| VGA output | 800x600，1024x768，1280x1024，1440x900，720P，1080P |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video & audio code and decode parameters | |
| Multi-mode switch | AHD: 32CH*1080N；24CH*1080N ; 16CH*1080N |
| AHD+IP: 8CH*1080N (analog) + 8CH*960P(network); | |
| IP: 32CH*1080P；16CH*3M；8CH*5M； | |
| Video compress standard | H.264 |
| Motion Detection | Each screen canbe set to 192 (16 *12) detection areas;multi-level sensitivity can be set (Limited localchannel) |
| Encode Ability | 32CH*1080N @15fps |
| Decode Ability | 8CH*1080N @15fps |
| Audio compress standard | G.711A |
| Record & Playback | |
| Record mode | manual>alarm>motion detection>timing |
| LocalPlayback | 8ch(local input mode) |
| Searchmode | Search bytime, calendar, event, channel |
| Synchronously playback channels | 1/4/8/9/16CH （It is defined with the mode switch） |
| Storage & Backup | |
| Video storage | HDD, Network |
| Backup mode | Network, USB Harddisk, USB burner, SATA Burner |
| Hard driver | |
| Mode | 2*SATA |
| HDD capacity | each port support max 6TB HDD |
| External port | |
| Voice intercom | 1PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Internet port | RJ45 10M/100M /1000M self-adaption |
| Serial port | 1PCS RS485 Port; |
| 1PCS RS232 Port; | |
| USB port | 2*USB 2.0 |
| Wireless | 3G, WIFI (Extended via USB) |
| Alarm input | 16 |
| Alarm output | 4 |
| System | |
| Operating System | embedded Linux |
| System resources | Simultaneously multi-channel real-time recording, playback, network |
| operation,USBbackup | |
| Interface | |
| Operator Interface | Support 16-bit true color graohical menu interface and mouse operation |
| Preview | 1/4/8/9/16/32 |
| Other | |
| Power supply | DC12V/5A |
| Power consumtion(without HDD) | ≤15W |
| Work temperature | 0℃--＋55℃ |
| Work humidity | 10％--90％ |
| Box Size ( W*L*H (cm) ) | 48*34*10cm (Tolerance +3cm) |
