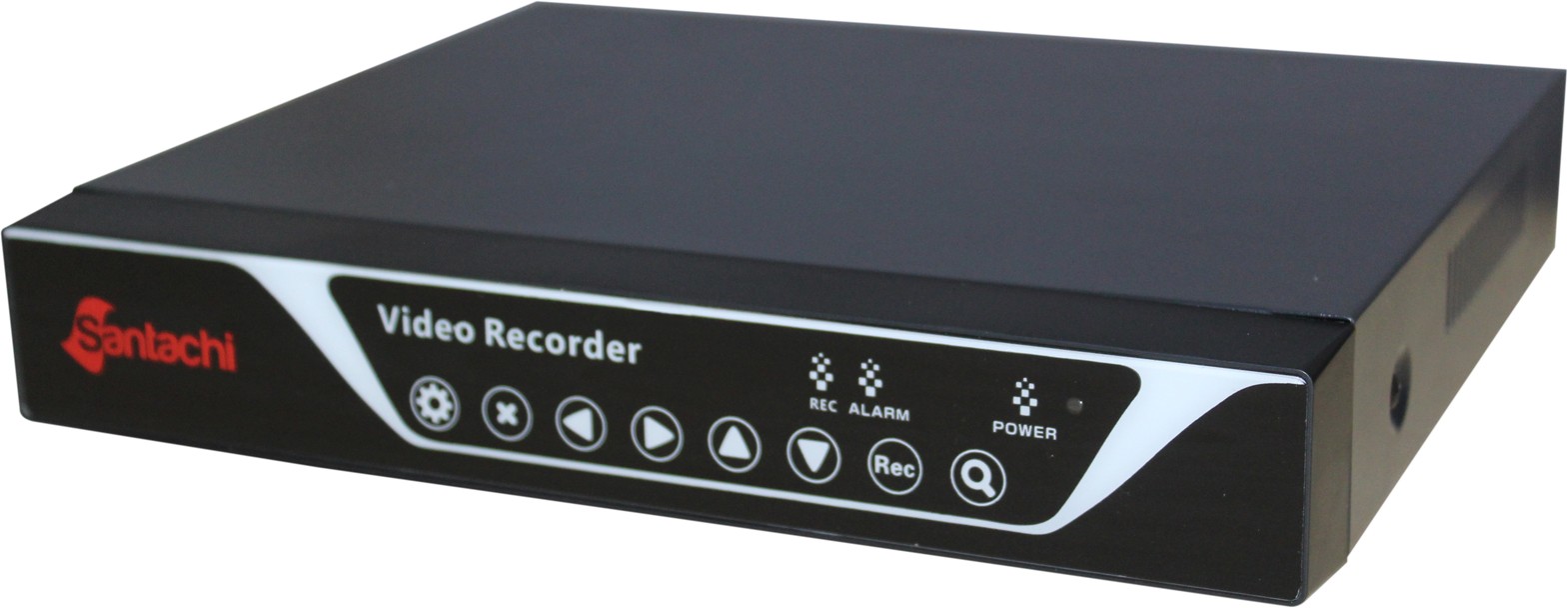

Click on above image to view full picture
Details
| Video & audio input | |
| Analog video input | 4PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio input | 4PCS RCA Port(Level : 2.0Vp-p, impedance : 1kΩ) |
| Network video input | 2CH |
| Video & audio output | |
| HDMI output | 800x600，1024x768，1280x1024，1440x900，720P，1080P |
| VGA output | 800x600，1024x768，1280x1024，1440x900，720P，1080P |
| CVBS output | 1PCS BNC Port(Level: 1.0Vp-p, impedance : 75Ω) |
| Audio output | 1PCS RCA Port( line level , impedance : 1kΩ) |
| Video & audio code and decode parameters | |
| Record resolution | CIF/HD1/D1/960H/720P |
| Motion detection | Motion Detection Recording |
| Synchronously playback channels | 1/4CH |
| Record management | |
| Record & Snapshot mode | manual recording, regular recording, motion recording, alarm recording, events recording |
| Playback mode | regular playback,alarm playback,motion detection playback,events playback |
| Backup mode | regular backup, events backup, manual backup |
| Hard driver | |
| Mode | 1*SATA |
| HDD capacity | max 4TB HDD |
| External port | |
| Voice intercom | NO |
| Internet port | 1PCS RJ45 10M / 100M adaptive Ethernet port |
| USB port | 2*USB2.0 |
| Alarm input | NO |
| Alarm output | NO |
| Network Management | |
| Network protocol | NTP、PPPoE、DDNS、FTP、ARSP、WIFI、3G |
| Other | |
| Power supply | DC12V |
| Power consumtion(without HDD) | ≤10W |
| Work temperature | -10℃--＋55℃ |
| Work humidity | 10％--90％ |
| Net weight(without HDD) | 0.86kg (Tolerance ±100 gms) |
| Gross weight(without HDD) | 1.53kg (Tolerance ±100 gms) |
| Box size(L*W*H(cm)) | 36*27*8.5cm (Tolerance ±3cm) |
