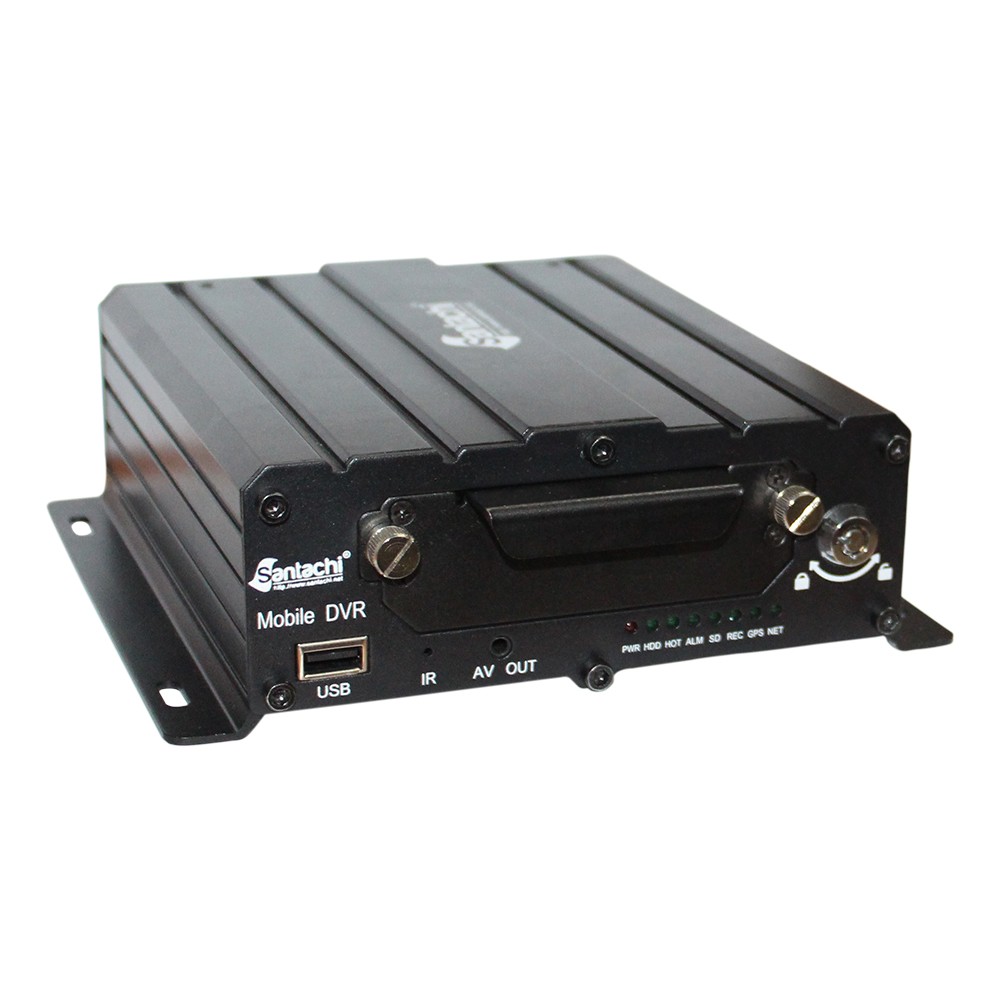

SAN61205MDRZE

SPECIFICATIONS:

Video compression

H.264compression

OSD

Overlays information such as date time and vehicle ID

Resolution

1080P/720P/D1/HD1/CIF, MAX:4 channels 720P and 1 channels 1080P

Video Standard

PAL: 100f/s, CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, 8 levels video quality optional 1080P:

Preview

Support 1 channel and 5 channels preview, Support Manual/Alarm Trigger full screen preview

GPS Position

Support Built GPS/BD Module, can make playback analysis of vehicle routing

Smart Phone

Support Android / IOS Smart phone

Wireless Transmission

Support Built-in 3G/4G network, WCDMA, CDMA2000, TDD-LTE, FDD-LTE...

Video Input

04CH*720P AHD/SD/MIXED + 01CH*1080P Network (Aviation connector)1.0Vp-p 75Ω

Video Output

2CH CVBS+ VGA output for optional, 1.0Vp-p, 75 Ω, Aviation, Support 1CH Full Screen, 4CH Screen view

Image Quality

0-7 levels, 0 is the highest level.

Audio

Input: 4CH Aviation Plug Input + 1CH IPC input mixed Audio stream.

Output: 2CH headphone connect at front panel, BNC connect on Back panel

Storage Capacity

Max 2TB HDD supported (Size: 2.5”)

Max 128GB SD Card Mirror Recording Keep Data Safety

Voice Call

Support voice call each other

Alarm

8CH Alarm Input,1CH AD Input, impulse speed input, Alarm Linkage

2CH Alarm Output, Support Light/Sound alarm sensor, Oil/Power cut off

USB Port

USB Interface on Front Panel, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data

Communication Interface

3CH RS232, support extension device, such as POS machine, Oil Fuel sensor, LED advertising screen, etc.

2CH 485 interface, can connect PTZ, etc.

2CH CAN interface.

Playback

Max support 4CH Replay / Stop / Fast / Slow at same time;

Support forward and backward play at the speed of x2, x4, x8, x16

Security

User / Admin 2 Level Different Password, support screen lock

Power Management

Adaptive wide power input, support Wide Voltage, Over-load、Over-voltage、 Short Circuit、Reverse Protection. Support Time Setting/Delay power off

Voltage

Input: DC:+8V - +36V

Output: +12V@2.5A，+5V@2.5A

Power

Working <5W

Temperature & Humidity

-20°C - +70°C

20%- 80%

Size

200（D）* 187（W）* 62（H） mm (± 20 mm)

1.90 KG (± 0.20 Kg)
