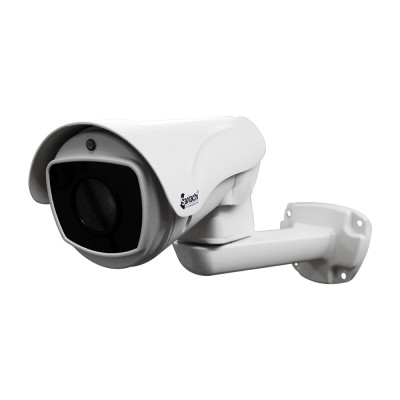

SAN23200NBAG

Be the first to review this product

Up to 2.0 megapixel high resolution

Max. 2MP(1920 × 1080)

Lens 10X f-5.1 /51mm

H.265 /H.264 Compression

2D/3D Digital Noise Reduction

IR range up to 100 m

Power DC 12V,4A

IP66 Standard Weather Proof

Email to a Friend

Details

Image Sensor
Image Sensor	1/3” CMOS
Effective Pixels	1920(H) x 1080(V)
Scanning System	Progressive
Electronic Shutter Speed	auto/ manual (1 to 1/8000)
Minimum Illumination	0.1 Lux@F1.2 (color)
	0.01 Lux@F1.2 (black and white )
S/N Ratio	≥50db(AGC OFF)
IR Distance	Distance up to 100m
IR On/Off Control	Auto /Day/Night/Outcontrol
IR LEDs	Array 42Mil 4pcs + 2 Laser LED's

Lens
Focal Length range	5.1mm -51mm
Aperture Range	F1.6~F2.8
Zoom Speed	Turbo
FOV	15°-70°
Mount Type	Board-in
Optical Zoom	10 X
Focus Control	Auto /Manual

PTZ
Pan/Tilt/Zoom	Auto /Manual
Pan Range	0°-220° continuous rotation
Tilt Range	-45° ~40°
Pan Speed	speed: 0-30°/s
Tilt Speed	speed: 0-25°/s
Zoom Range	10x
Preset Points	220
Guard Tours	3 groups
A-B Scan	User programmable
A-B Scan Range	any point in range:-45º~40º and 0º-220º
A-B Scan Speed	1-8 levels setting available
Dwell Time	01-60s interval available
Communication Protocol	ONVIF2.4 ,Compatible with DAHUA, XM,Video park NVR
Baud Rate	9600bps by default
Guard Points	Max.16 points, dwell time user selectable
Operation menu	English
Auto Control IR LED	PWM
Pan and Tilt position display	Support
Support ambient light detection	IR illumination on 1-8 grades selectable;

Intelligence
IVS	N/A
Advanced Intelligent Functions	N/A

Video
Compression	H.265 /H.264
Streaming Capability	3 Streams
Resolution	1080P(1920×1080)/1.3MP(1280x1960)/ 1MP(1280x720)
	VGA(640×480)/CIF(352×288/352×240)
	MJPEG (1920x1080)/(1280x720)
Frame Rate	Main Stream: 2MP@(3 ~ 30fps)
	Sub Stream: VGA@(3 ~ 30fps);
	MJPEG: 1280x720@(1 ~ 5fps)
Bit Rate Control	CBR/VBR
Bit Rate	maximum bitrate	minimum bitrate	ultra minimum bit rate
	2MP: 510bitrate @30 fps	128 bitrate @30fps	VGA: 32 bitrate @30fps
Day/Night	Auto(ICR); Color; B/W
BLC Mode	Off / On
White Balance	Auto /Manual (Red gain /Blue gain)
Auto Gain Control	Auto/Manual (level 1 to 100)
Noise Reduction	3D DNR
Privacy Mask	Support 4 area privacy mask
Motion Detetion	Off / On (22x18 Zones, Rectangle)
Region of Interest	N/A
Electronic Image Stabilization (EIS)	N/A
Smart IR	Support
Defog	Off / On (level 1 to 100)
Digital Zoom	Manual
Flip	Off / On
Mirror	Off / On
anti flicker	Off / On
IRSwap	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)

Audio
Audio	N/A

Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	TCP/IP，HTTP， NTP，IGMP，
	DHCP，UDP，SMTP，RTP，RTSP，ARP，DDNS，DNS,PPPoE，P2P，
Transmit	P2P(plug and play), automatic port forwarding
Signal Frequency	2.4 GHz
Max. User Access	7 Users
Edge Storage	NAS
	Local PC for instant recording
Web Viewer	IE(recommended), Chrome, Firefox, Safari, opera
Management Software	XMEYE
Smart Phone	IOS, Android (XMEYE)

Certifications
CE, UL, FCC

Interface
Audio Interface	N/A
Communication Interface:	1 RJ45 10M/100M Ethernet port
Alarm	N/A
System Compatibility	ONVIF GB/T28181

Electrical
Power Supply	DC 12V (4A)
Power Consumption	<11W

Environmental
Operating Conditions	-10℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation）
Strorage Conditions	-20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation）
Ingress Protection	IP66 Standard

Construction
Casing	Metal
Dimensions (Packed)	396x196x160mm
Net Weight (Packed)	1.75kg (Tolerance +/- 0.20 kgs)
