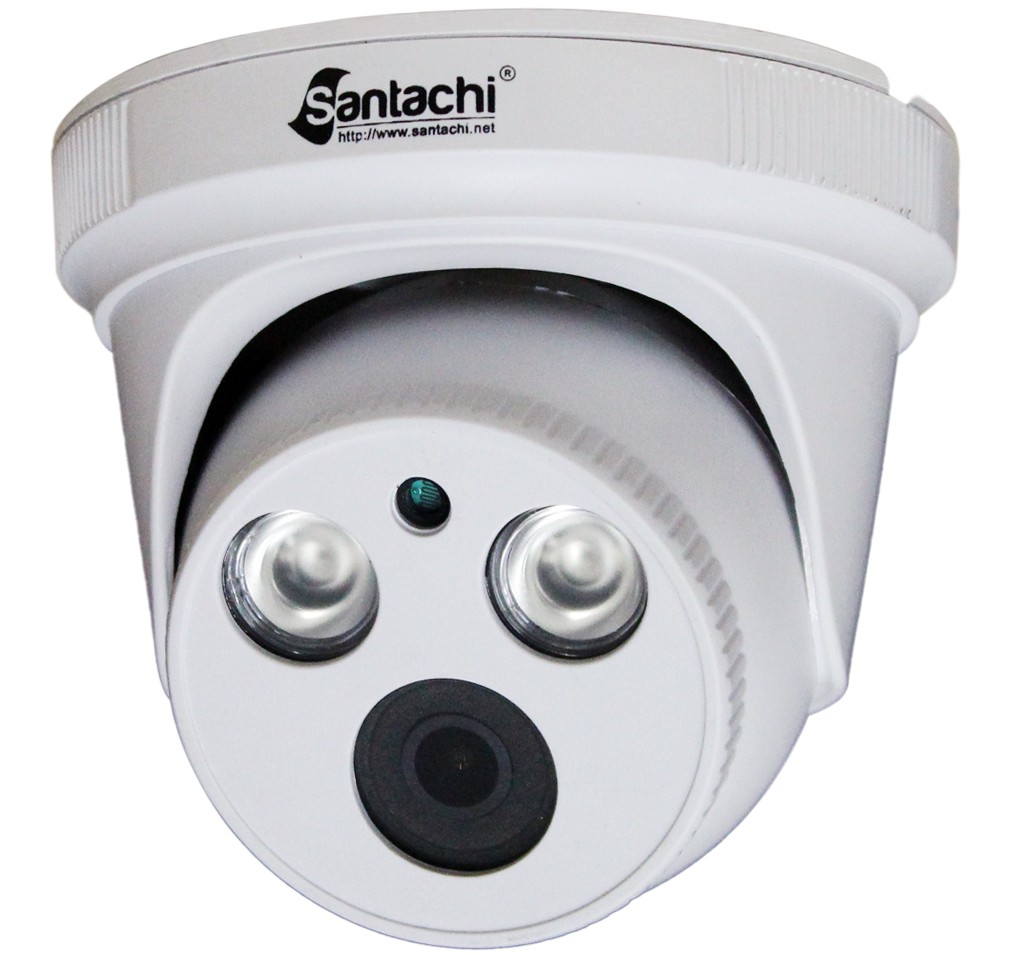

Click on above image to view full picture
Details
| Image Sensor | |||
| Sensor size | 1/2.8” CMOS | ||
| Effective Pixels | 1920(H)x1080(V) | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | auto/ manual (PAL: 1/25~1/100000s NTSC: 1/30~1/100000s) | ||
| S/N Ratio | ≥46db | ||
| IR Distance | 15m to 20m | ||
| IR On/Off Control | Auto/ Manual | ||
| IR | 2 IR Array | ||
| TV System | PAL/NTSC | ||
| Lens | |||
| Lens Type | Fixed | ||
| Mount Type | Board-in | ||
| Focal Length | 3.6mm (1.7, 2.8, 6, 8, 12 mm optional) | ||
| Max. Aperture | F1.2 | ||
| Optical Zoom | N/A | ||
| Focus Control | Fixed | ||
| Available lens | Lens | Angle (FOV) | Distance |
| 2.8 mm | 90 | 3 M | |
| Selected lens (by default) | 3.6 mm | 70 | 8 M |
| 6.0 mm | 50 | 15 M | |
| 8.0 mm | 33 | 20 M | |
| 12.0 mm | 22 | 40 M | |
| PTZ | |||
| Pan/Tilt/Zoom | N/A | ||
| Pan/Tilt/Zoom Range | N/A | ||
| Auto Zoom | N/A | ||
| Auto Track | N/A | ||
| Intelligence | |||
| IVS | N/A | ||
| Advanced Intelligent Functions | N/A | ||
| Video | |||
| Resolution | 1080P(1920×1080);1.3M(1280x960); | ||
| 720P(1280×720); D1(704×576/704×480) | |||
| Frame Rate | Main Stream: 2MP@ 25fps | ||
| Sub Stream: D1@(1 ~ 25fps); | |||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | maximum bitrate | ||
| 2MP: 8192bitrate @25fps | |||
| Day/Night | Auto(ICR); Color; B/W | ||
| BLC Mode | Off / On | ||
| White Balance | Auto | ||
| Auto Gain Control | Auto/Manual (level 1 to 100) | ||
| DNR | High/Medium/Low/Off | ||
| Noise Reduction | 2D DNR | ||
| Smart IR | Support | ||
| Digital Zoom | Manual | ||
| Interface | |||
| Video Interface | BNC | ||
| White balance | ATW / AWC / Indoor / Outdoor / Manual | ||
| Mirror | Vertical/ Horizontal / Vertical + Horizontal /Off | ||
| Electrical | |||
| Power Supply | DC12V | ||
| Power Consumption | <11W | ||
| Environmental | |||
| Operating Conditions | -20℃～+50℃ (-4F ~ +122F)，Less than 95%RH (No condensation） | ||
| Ingress Protection | IP65 | ||
| Construction | |||
| Casing | Plastic | ||
| Dimensions | 132 x 132 x 115 mm | ||
| Net Weight | 0.15kg | ||
| Gross Weight | 0.25kg | ||
