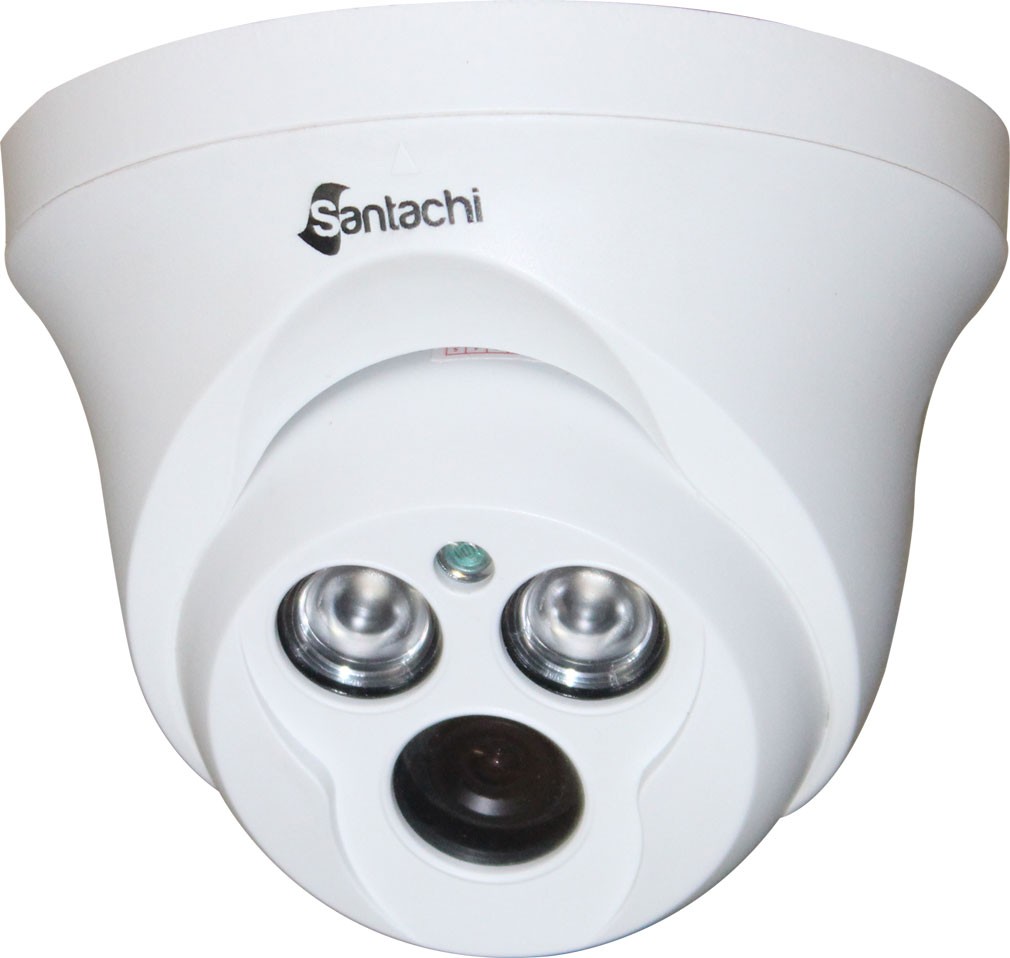

SAN5800DAZ

Click on above image to view full picture

SAN5800DAZ

Be the first to review this product

Details

Scanning System PAL NTSC
Effective Pixel Array 976( H) * 496( V)
Image Sensor 1/3” CMOS
Horizontal Definition 800TV Line
Lens 3.6 mm
IR View Distance 15 to 20 meter
LED 2 High Power Array Leds
LED Switch Auto
Illumination 0. 05Lux/ f1. 2
AGC Auto
Synchronization System Internal / External
Video Output 1. 0Vp- p/ 75Ω
Video Frame Rate 60 fps @ 960x480, YCbCr
60 fps @ 960x480, Bayer, 36Mhz
60 field @ 960x240(288), YCbCr, 36Mhz
30 fps @ CVBS, 36Mhz
Backlight Compensation Auto
Electronic Shutter 1/ 50( 1/ 60) ~ 1/ 100000sec
White Balance Auto
S/N Ratio 46.4 [dB]
Dynamic Range 63.5 [dB]
Weather Proof Standard IP65
Operation Temperature -20 ~ +50
Operation Humidity ≦85%
Power Supply  12 VDC±10%
Power Consumption Max. 2.5A
