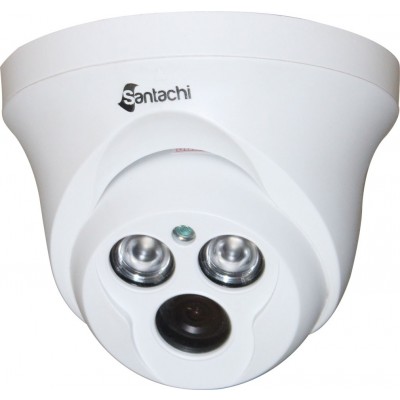

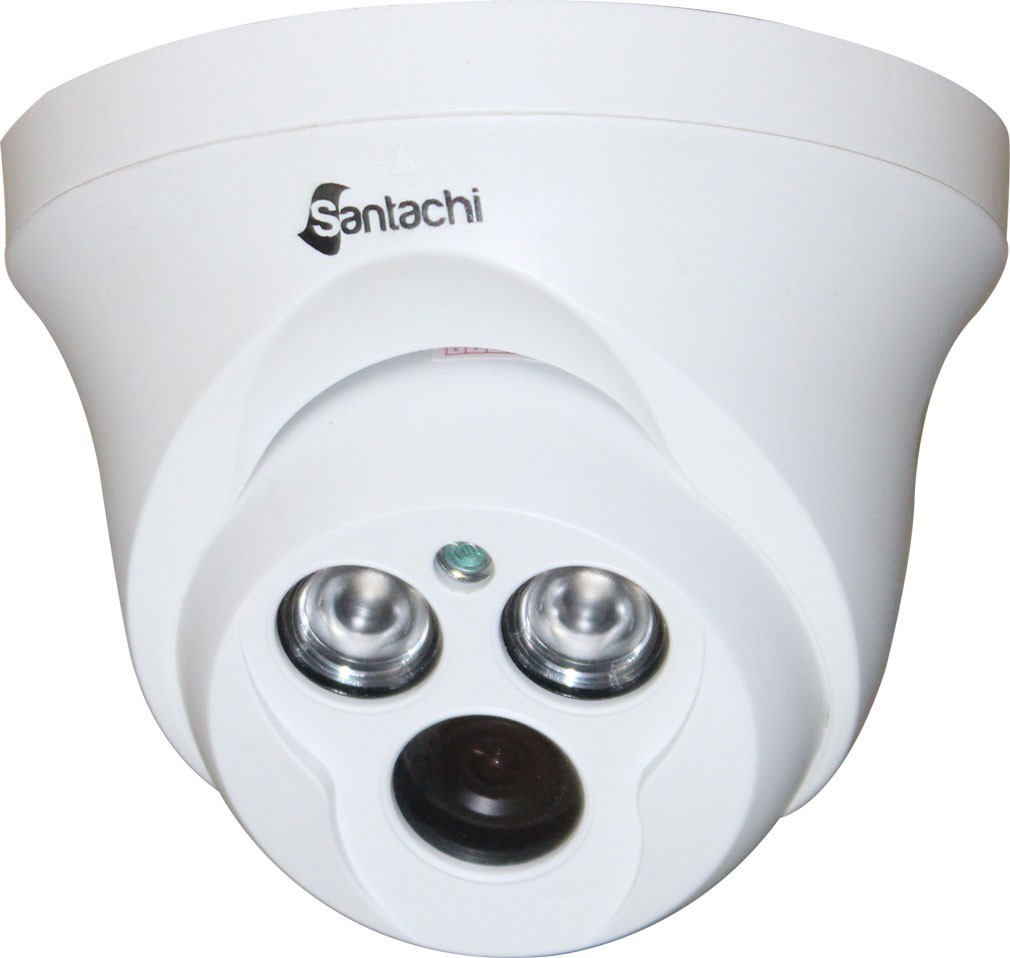

SAN111200DAZ

Click on above image to view full picture

SAN111200DAZ

Be the first to review this product

Details

Image Sensor
Sensor size 1/2.8” CMOS
Effective Pixels 1920(H)x1080(V)
Scanning System Progressive
Electronic Shutter Speed auto/ manual (PAL: 1/25~1/100000s NTSC: 1/30~1/100000s)
S/N Ratio ≥46db
IR Distance 15m to 20m
IR On/Off Control Auto/ Manual
IR  2 IR Array
TV System PAL/NTSC

Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 3.6mm (1.7, 2.8, 6, 8, 12 mm optional)
Max. Aperture F1.2
Optical Zoom N/A
Focus Control Fixed
Available lens Lens Angle (FOV) Distance
  2.8 mm 90 3 M
Selected lens (by default) 3.6 mm 70 8 M
  6.0 mm 50 15 M
  8.0 mm 33 20 M
  12.0 mm 22 40 M

PTZ
Pan/Tilt/Zoom N/A
Pan/Tilt/Zoom Range N/A
Auto Zoom N/A
Auto Track N/A

Intelligence
IVS N/A
Advanced Intelligent Functions N/A

Video
Resolution 1080P(1920×1080);1.3M(1280x960);
720P(1280×720); D1(704×576/704×480)
Frame Rate Main Stream: 2MP@ 25fps
Sub Stream: D1@(1 ~ 25fps);
Bit Rate Control CBR/VBR
Bit Rate maximum bitrate
2MP: 8192bitrate @25fps
Day/Night Auto(ICR); Color; B/W
BLC Mode Off / On
White Balance Auto
Auto Gain Control Auto/Manual (level 1 to 100)
DNR High/Medium/Low/Off
Noise Reduction 2D DNR
Smart IR Support
Digital Zoom Manual

Interface
Video Interface BNC
White balance ATW / AWC / Indoor / Outdoor / Manual
Mirror Vertical/ Horizontal / Vertical + Horizontal /Off

Electrical
Power Supply DC12V
Power Consumption <11W

Environmental
Operating Conditions -20℃~+50℃ (-4F ~ +122F),Less than 95%RH (No condensation)
Ingress Protection IP65

Construction
Casing Plastic
Dimensions 132 x 132 x 115 mm
Net Weight 0.15kg
Gross Weight 0.25kg
